glasswool heat resistant insulation aluminium foil cover hot steam insulation pipe

FOB Reference Price:Get Latest Price
$24.00 - $300.00 / Meter | 500 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 500 Meters)
Customized packaging (Min. Order: 500 Meters)
Samples:
$0.01 /Meter | 1 Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 YEAR
After-sale Service:
Online Technical Support
Project Solution Capability:
Others
Place of Origin:
Hebei, China
Brand Name:
Xingbang
Model Number:
1020/1420mm
Color:
Black
Insulation material:
glass wool,rock wool,as request
Insulation thickness:
60-170mm
Standard:
CJ/T200-2004
Certificated:
ISO9001,14001 and CE
Transmit temperature:
150-350 degree
Length:
12m 6m
Working pressure:
less than 1.6Mpa steam
Buried depth:
Underground 1-2m
Supply Ability
Supply Ability:
500000 Meter/Meters per Month
Packaging & Delivery
Port
Tianjin

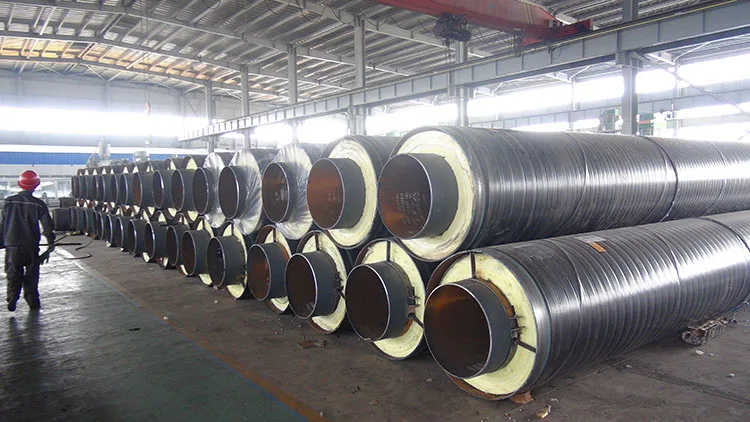

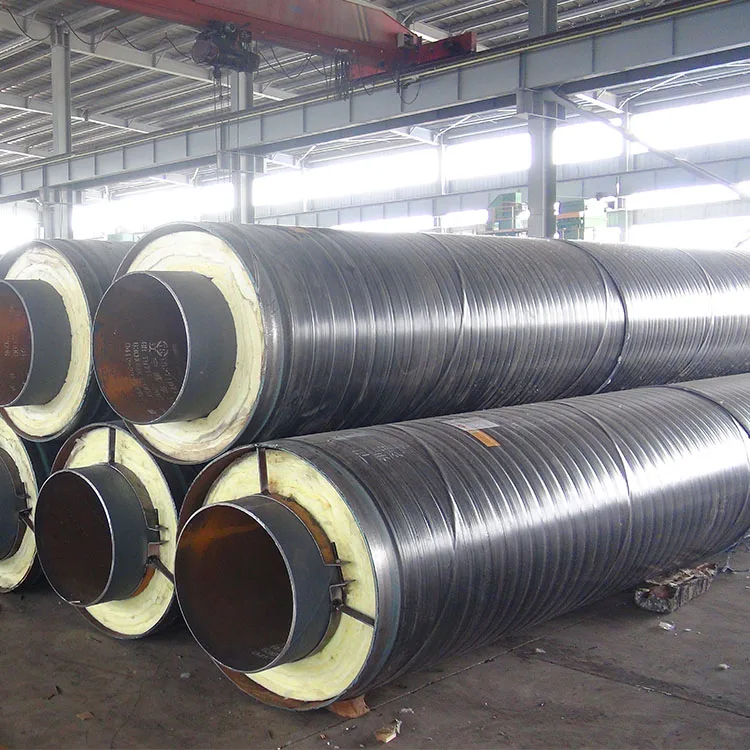

Product name

Steel jacket steam insulation pipe

Wall  Thick

0.5mm-16mm,or customized

Length

1m-12m ,or by customer's requirements

Laid way

Buried, overhead, trench

Production Standard

CJ/T200-2004, CJJ104-2005

Packing

Plastic cap for both end, steel strips bundled

Application

Urban central heating Petroleum,chemical,power high temperature



Quality Control

100% X-Ray inspection

100%Hydraulic Pressure test

100% Ultrasonic inspection

(For more, please click here)



Main Performance Index

Performance index

Reference standard

Unit

Standard requirement

Finished pipe combination

Appearance

CJ/T200-2004



No obvious

pits,bulges,cracks

Work pipe axial movement

CJ/T200-2004



No jam can move

Outer protection pipe temperature

CJ/T200-2004

≤50

Heat loss

CJ/T200-2004

W/ m²

≤100

Overall compressive strength

CJ/T200-2004

MPa

≥0.08

Axis eccentricity

CJ/T200-2004

mm

4/5/6

Vacuum absolute pressure

(Vacuum type)

CECS206-2006

mbar

20

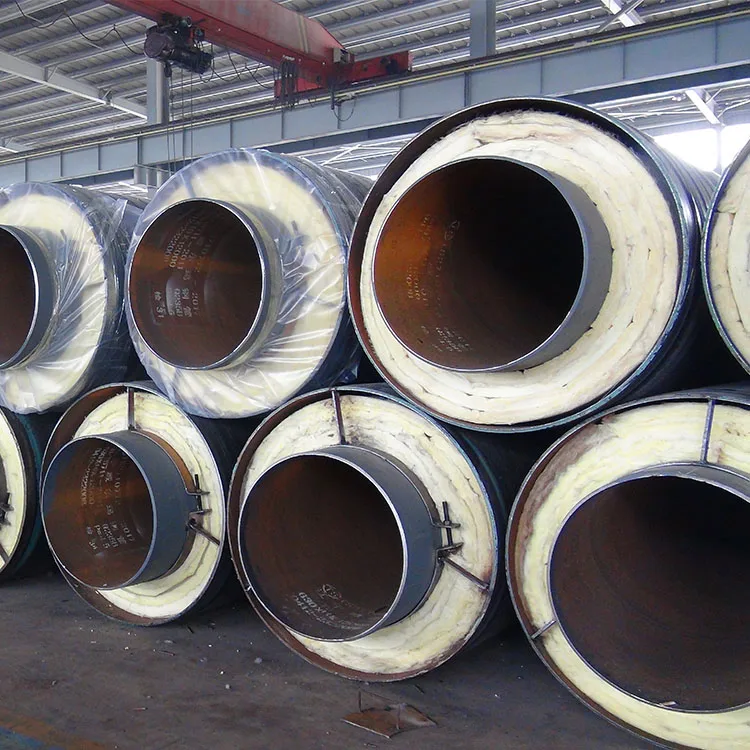

Extra-fine glass wool

Density

CJ/T200-2004

Kg/m³

48

Maximum working temperature

CJ/T200-2004

454

Thermal conductivity

CJ/T200-2004

W/m.k

≤0.05

Average fiber diameter

CJ/T200-2004

μm

6

Water tolerance

CJ/T200-2004

100 degrees of boiling water

No significant changes in physical

Anti-moisture

CJ/T200-2004

Expose 96h

Moisture is less than the product weight

Anti-corrosion

CJ/T200-2004

For steel

No corrosion

Fire proofing

CJ/T200-2004

Non inflammability



Grade A



> > > If you have other questions,Please contact us













1: Are you a manufacturer or a trading company?

We are a manufacturer which has  more than   2 0 years' history.

2: Where is your manufacturer? How to visit it?

Our factory located in  Yutian Economic Development Zone ,TangShan , China. A bout 1.5 hours drive time to  Beijing and TianJin airport . Mainly producing pre-insulated pipes, HDPE outer protection pipe and 3PE anti-corrosive pipe.

You can take a plane to Beijing or Tianjin .then we could pick up you at the airport .

3: How do we control our products' quality?

We have professional quality control workers and quality inspection center(CNAS lab)  to control the entire production quality.

4: How do you transport these products?

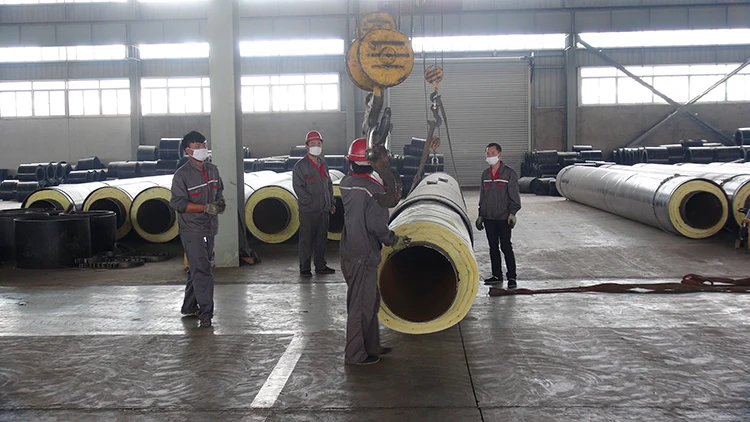

We use straps to hoist pre-insulated pipes, it can avoid no damage to our products, no hooks for lifting pipe directly. During the handling process, collision, tossing and more ground drag scrolling are strictly forbidden.

In the process of long distance transport, the pipes should be fixed, and not damage outer protecting pipes and insulating layers.

5: Can I customize some other sizes of products?

Yes! We can according to the customer's request.
If you have any other questions, please don't hesitate, contact us.
